Compact Flat Snap Hook 45mm 2500Kgs

Categories ,

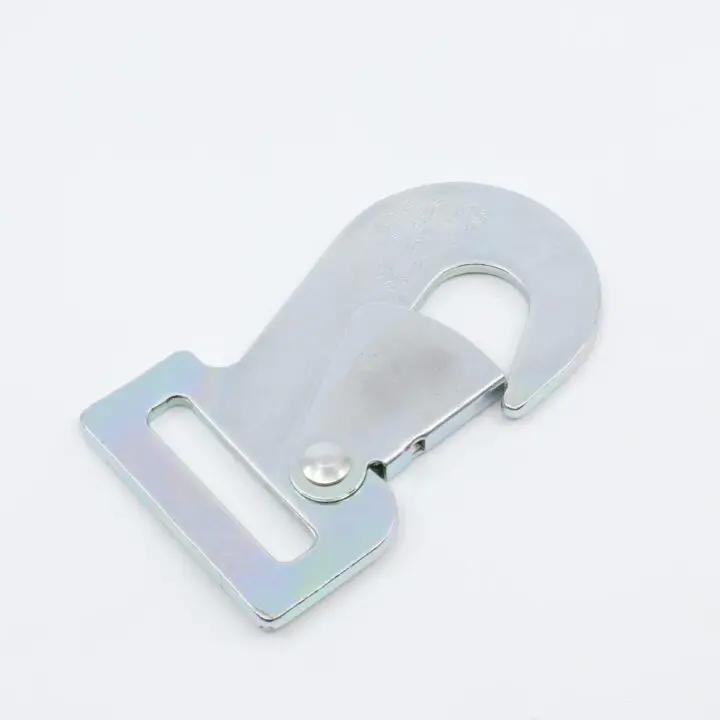

The FSH4525 is a pressed steel Flat Snap Hook designed for 45mm webbing. The hook is designed with a spring loaded safety catch that once engaged will not come detached; this offers a better level of security than standard hooks. The length of the hook is 110mm and the diameter of the hook will allow it to fit on to a 21mm bar.  The hook is made from carbon steel and has a breaking strength (BS) of 2500kg.

The snap hook meets the requirements of the European Load Restraint Standard EN12195-2:2001 which requires the hook to have a lashing capacity (LC) of 1250daN stamped on the hook together with the suppliers name and the part number FSH4525. The breaking strength (BS) of 2500kgf is also shown to indicate the maximum load that can be applied to the buckle before failure.

Breaking Force: 2500kgf
Lashing Capacity: 1250daN
Width of Webbing: 45mm
Buckle Weight: 151 grams (0.151kg)

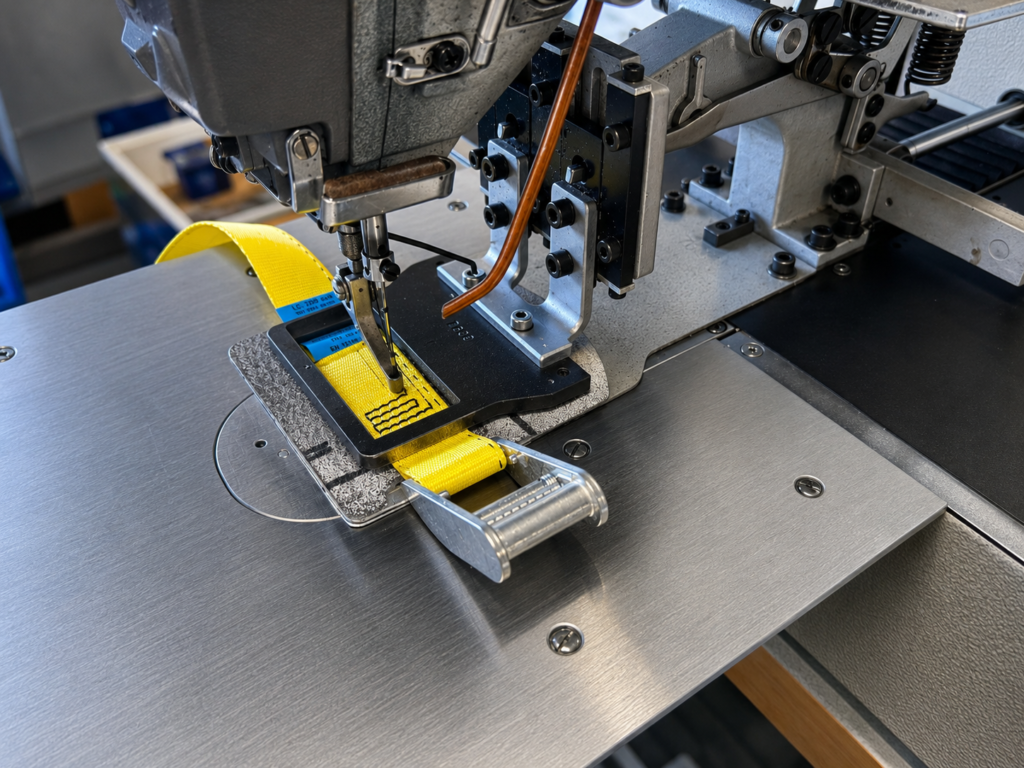

GTF® have a complete range of Snap Hooks suitable for all types all load restraint applications and manufacture a full range of Ratchet Straps used for securing any type of load.
