Compact Flat Snap Hook 45mm 5000kg

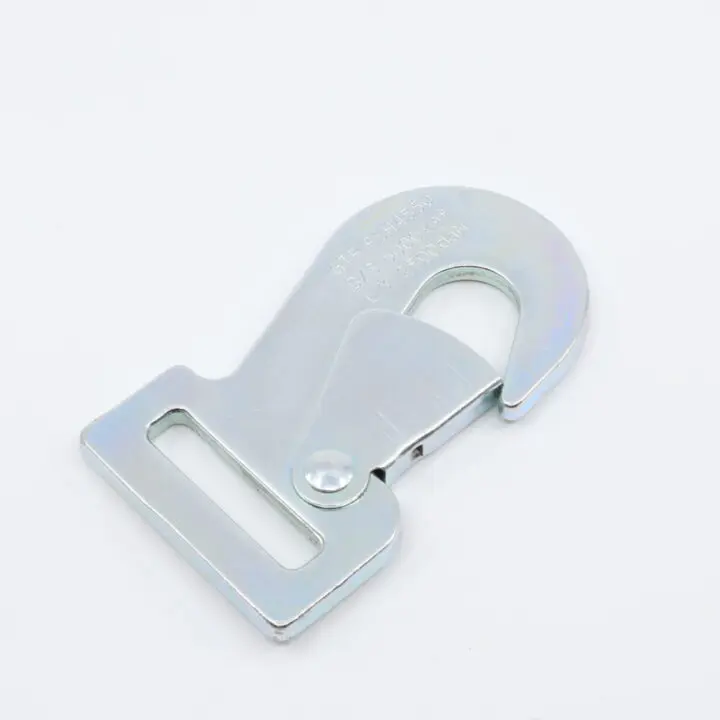

The FSH4550 is a pressed steel Compact Flat Snap Hook designed for 45mm & 50mm webbing. The hook is designed with a spring loaded safety catch that once engaged will not come detached; this offers a better level of security than standard hooks. The length of the hook is 111mm and the diameter of the hook will allow it to fit on to a 22mm bar.  The hook is made from carbon steel and has a breaking strength (BS) of 5000kg.

The snap hook meets the requirements of the European Load Restraint Standard EN12195-2:2001 which requires the hook to have a lashing capacity (LC) of 2500daN stamped on the hook together with the suppliers name and the part number FSH4550. The breaking strength (BS) of 5000kg is also shown to indicate the maximum load that can be applied to the buckle before failure.

GTF® have a complete range of Snap Hooks suitable for all types all load restraint applications.

Breaking Force: 5000Kgf
Lashing Capacity: 2500daN
Width of Webbing: 45mm & 50mm
Buckle Weight: 214 grams (0.214kg)

GTF® manufacturers a full range of Ratchet Straps in there factory in Eastbourne
