Wire Snap Hook 50mm 5000Kgs with Safety Catch

Categories ,

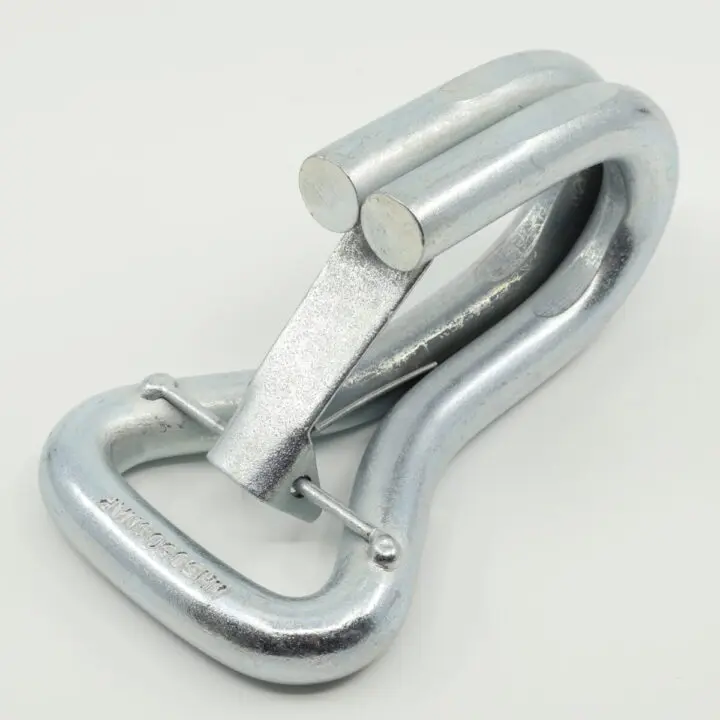

The WH5050SNAP-15 is a wire claw hook designed for 50mm webbing. The hook is designed with a  spring loaded safety catch that once engaged will not come detached; this offers a better level of security than standard hooks. The length of the hook is 138mm and the diameter of the hook will allow it to fit on to a 32mm diameter bar. The wire hook is used extensively in the manufacture of cargo securing equipment and is manufactured by GTF® in its wholly owned factory in Noida, India (www.gtcfi.com).  The hook is made from boron alloy steel which gives it extra strength and durability. It has a breaking strength (BS) of 5000Kg.

The wire hook meets the requirements of the European Load Restraint Legislation Standard EN12195-2:2001 which requires the hook to have a lashing capacity (LC) of 25kN. This capacity is stamped on the hook together with the part number WH5050SNAP-15 and batch number therefore offering full traceability.

The WH5050SNAP-15 wire claw hook is used in our manufacturing of 5 tonne ratchet straps. We have two similar hooks, the WH5050SNAP-11 is much smaller and is used to fit on to 15mm bar and the WH5050SNAP-12 which fits on to a 26mm bar.

GTF® have a complete range of wire hooks suitable for all types all load restraint applications.

Breaking Force: 5000Kgf
Lashing Capacity: 2500daN
Width of Webbing: 50mm
Buckle Weight: 640grams (0.640Kg)

GTF manufacture of a full range of heavy duty ratchet straps used for securing loads.
