RL50DW LH-ERG

50mm Ergo Ratchet Strap with Delta Rings – LC2500daN

UK Manufactured
Meets and Exceeds the European Standard EN12195-2
GTF is trusted by Industry Professionals for Over 35 Years
Made to order (short lead time)

Additional Info:

Webbing Width:
50 mm
Buckle:
RB5050LH-ERG-HD
End Fitting:
DR5050W
Breaking Strength:
5000 kg
Lashing Capacity:
2500 daN
Handle Type:
Long Handle Ergonomic

GTF stocks a wide range of compatible ratchet buckles and end fittings for this strap. Please be aware that using alternative components may reduce the overall breaking strength, so ensure all parts are suitable for your application.  If you would prefer one of these alternatives, please let us know.

RB5050LH-ERG-5 - 50mm, 5000kg Long Handled Ergonomic Ratchet Buckle with STF500
RB5050LH-ERG-5
5000 kg Break Strength
Carbon Steel
Silver
Long Handle Ergonomic
Currently Selected
RB5050LH-ERG-HD - 50mm, 5000kg, Long Handle, Heavy Duty Ergonomic Ratchet Buckle
RB5050LH-ERG-HD
5000 kg Break Strength
Carbon Steel
Silver
Long Handle Ergonomic
CL5050DF - 50mm, 5000kg Drop Forged Chain Link
CL5050DF
5000 kg Break Strength
Silver
DR5010W - 50mm, 1000kg Wire Delta Ring
DR5010W-6
1000 kg Break Strength
Silver
DR5030W - 50mm, 3000kg Wire Delta Ring
DR5030W
3000 kg Break Strength
Silver
DR5050DF - Drop Forged Delta Ring
DR5050DF
5000 kg Break Strength
DR5050F - 50mm, 5000kg Flat Pressed Delta Ring
DR5050F
5000 kg Break Strength
Silver
Default End Fitting
DR5050W - 50mm, 5000kg Wire Delta Ring
DR5050W
5000 kg Break Strength
Silver
PL0064 - 6400kg Pear Link
PL0064
6400 kg Break Strength
Alloy Steel
Silver

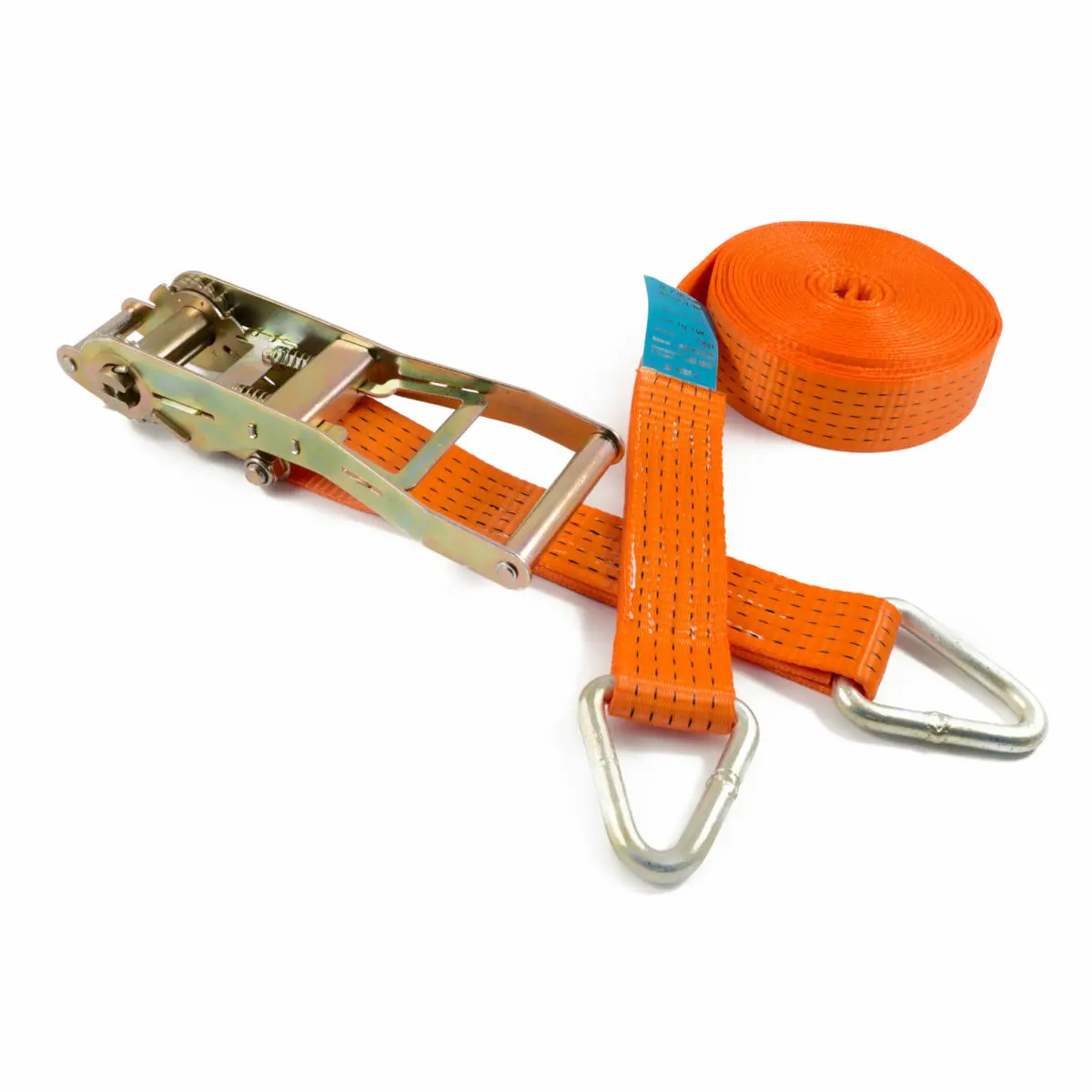

The RL50DW LH-ERG is a high-quality 50mm ergonomic ratchet strap assembly with wire-formed delta rings, rated to a breaking strength of 5,000kg. Manufactured in the UK to the highest standards, this lorry strap is designed for securely fastening everyday cargo, making it ideal for use in the haulage industry.

This ratchet strap complies with the European Standard EN12195-2 and achieves a lashing capacity (LC) of 2500daN (2500kg). The LC represents the maximum force that can safely be applied in a straight pull. Stock lengths are available in 4m, 6m, 8m, 10m, 12m, and 14m, with a fixed end length of 0.4m.

Constructed from high-quality polyester webbing, the RL50DW LH-ERG provides durability and strength. The heavy-duty ratchet buckle is made from carbon steel and features a rotating handle for better grip and improved tensioning. The longer handle design enables greater tension to be applied to the strap, ensuring a secure load. Unlike standard ratchets that require pushing upwards, this ergonomic ratchet is pulled down to tighten the load, reducing strain during use.

The delta ring is manufactured from boron alloy steel, which is stronger than carbon steel, providing enhanced strength and durability. All webbing is sewn using Number 6 polyester thread to ensure long-lasting reliability.

Custom-made ratchet straps can be supplied in a range of colours and sizes to meet specific requirements. A printing service is also available, allowing names or logos to be printed onto the webbing. GTF® manufactures to ISO9001 quality standards, with all components clearly marked for full traceability, ensuring compliance with European load restraint regulations.

To further protect the straps from wear, GTF® offers a comprehensive range of edge protectors.

If you cannot find what you are looking for, please contact us for more options.
