RL75H

75mm Ratchet strap with wire claw hook – LC5000daN

UK Manufactured
Meets and Exceeds the European Standard EN12195-2
GTF is trusted by Industry Professionals for Over 35 Years
Made to order (short lead time)

Additional Info:

Webbing Width:
75 mm
Buckle:
RB75100
End Fitting:
WH75100
Breaking Strength:
10000 kg
Lashing Capacity:
5000 daN

GTF stocks a wide range of compatible ratchet buckles and end fittings for this strap. Please be aware that using alternative components may reduce the overall breaking strength, so ensure all parts are suitable for your application.  If you would prefer one of these alternatives, please let us know.

Default End Fitting
WH75100 - 75mm, 10000kg Wire Claw Hook
WH75100
10000 kg Break Strength
Silver
WH75100SNAP - 75mm, 10000kg Wire Claw Snap Hook
WH75100SNAP
10000 kg Break Strength
Silver

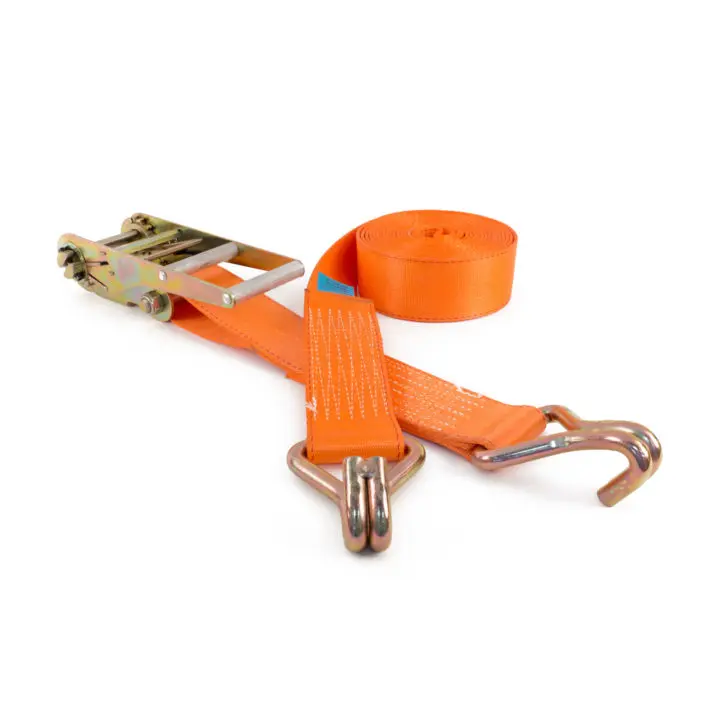

The RL75H is a heavy-duty 75mm ratchet strap assembly with wire claw hooks, rated to a breaking strength of 10,000kg (10 tonnes). Manufactured in the UK, this 2-part lashing system is designed to secure heavy cargo in demanding haulage and shipping environments. It features a long-handled ratchet buckle and high-strength orange polyester webbing, conforming to European Standard EN12195-2.

The strap achieves a lashing capacity (LC) of 5,000daN (5,000kg). The LC represents the maximum force that can safely be applied in a straight pull. Stock lash lengths include 8m, 10m, 12m, and 14m, with fixed end options of 0.5m or 1m.

The system includes a carbon steel ratchet buckle with a durable aluminium handle for optimal tensioning. The wire claw hooks are manufactured from boron alloy steel, offering enhanced strength and durability compared to standard carbon steel. All webbing is stitched with Number 6 polyester thread for maximum reliability.

Custom lengths and colours are available upon request. A printing service is also available to personalise straps with your company name or logo. GTF’s manufacturing is ISO9001 accredited, and all components are individually marked for full traceability in line with European load restraint standards.

GTF® also supply a comprehensive range of edge protectors to help safeguard straps and cargo during use.
