Ratchet Buckle 50mm 5000Kgs Black Epoxy Coated.

Categories ,

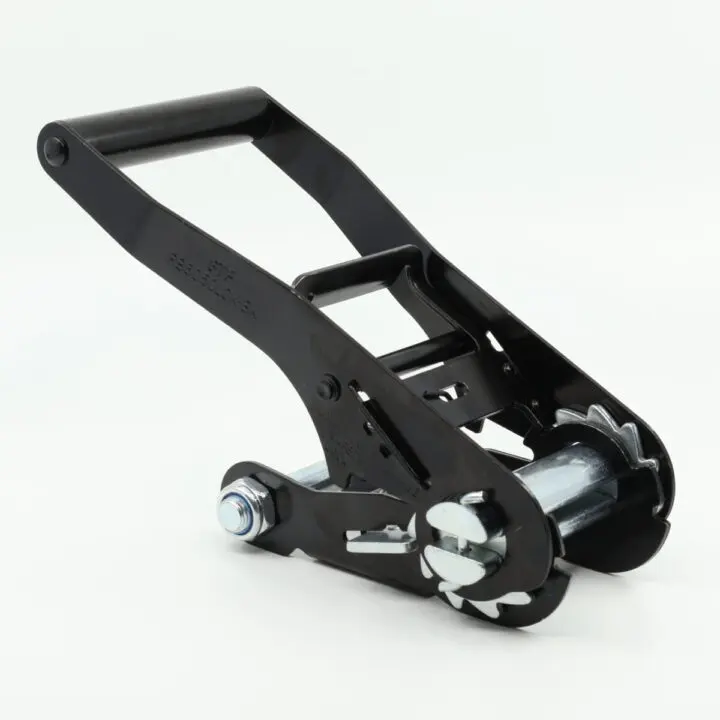

The RB5050LOK-BK is a long wide handled Epoxy Black Coated ratchet buckle with Locking Ratchet mechanism designed for 50mm webbing. It has a breaking strength (BS) of 5000Kg. The buckle is a locking ratchet, has an aluminium handle and has a 10mm hole in the base that allows the ratchet to be bolted to permanent structures. The ratchet buckle is a standard ratchet used for restraining lorry straps in road transport.

The ratchet meets the requirements of the European Load Restraint Legislation Standard EN12195-2:2001 which requires the buckle to have a lashing capacity (LC) of 25kN (2500kg) stamped on the ratchet together with the suppliers name GTF and part number RB5050LOK-BK for full traceability. The breaking strength (BS) of 5000Kg is also shown to indicate the maximum load that can be applied to the buckle before failure.

The Ratchet is manufactured from Carbon Steel.

Breaking Force: 5000Kgf
Lashing Capacity: 25kN
Width of Webbing: 50mm
Buckle Weight: 1110grams (1.110kg)

The RB5050LOK-BK ratchet is used in our range of Heavy Duty Ratchet Straps. GTF provide a range of end fittings that can be bolted directly on to the ratchet. GTF provide a range of 50mm polyester webbing that can be used in conjunction with the RB5050LOK-BK Ratchet Buckle.
